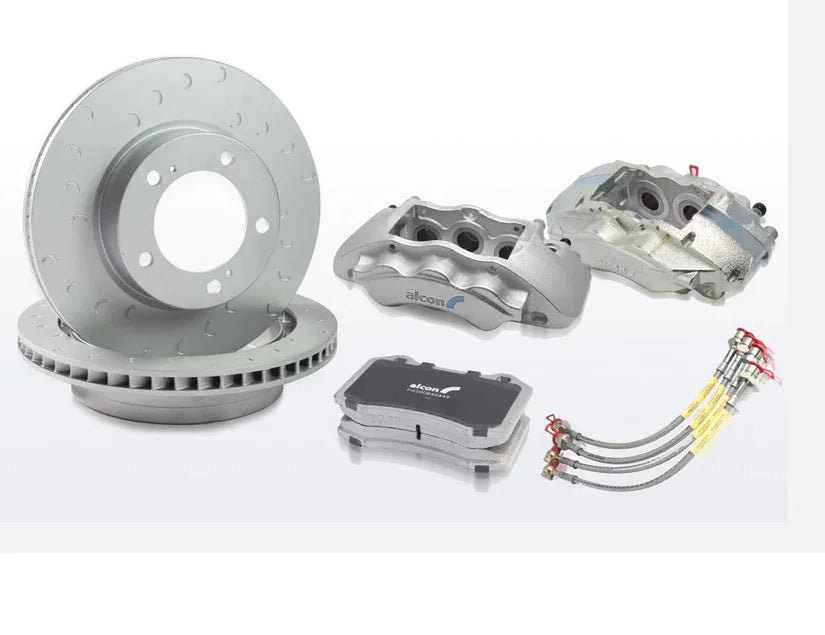

Toyota LC200, Tundra, and LX570 (07-15) Big Brake Kit (Front / Rear)

Description Alcon Armored/Off-Road Toyota LC200 complete brake system. Front uses 6 piston calipers with heavy duty 355mm x 36mm rotors. Rear features 4 piston calipers with and 370mm x 28mm rotors. 45% reduced brake temperature for more reliable stops in heavy duty applications. Up to 12,700lbs (5800kg) Front/Rear kit supports up to 12,700 lbs / 5800kg Front kit supports up to 9,900 lbs / 4500kg ***APPLICATION NOTES *** Validate caliper bracket bolts must be M12 to use this kit. – LC200 under 4500kg should use front kit only. Dust Shields may need to be modified either cutting or removing for proper fitment.

These kits were designed through extensive testing in Alcon’s military and armored program for many years and are an extremely effective and proven platform used worldwide by both NGO and official vehicles. Benefits 45% reduction in brake disc temperature rise 42% reduction in pad work rate for longer life and more torque 10% less pedal effort 10% increase in brake torque. Featuring Ductile iron calipers for the best abrasion resistance. No worries about rock and debris strikes Zinc finish for maximum corrosion protection and subtle OEM look. (Customer powdercoating is available!) HIgh friction/High temp brake pads.

Larger rotors for shorter stopping distance every time, not just the first or second stop. High temperature seals Fits under most 17″ and 18″ wheels Bleed screws on the inboard side for impact protection and tamper resistance. Front Includes SIX piston front calipers measuring 41.3mm each Front 355mm (14.0″) x 36mm (1.4″) rotors internally vented AV1 Compound Brake Pads Brackets Stainless Brake Lines Rear includes FOUR piston rear calipers 34.9mm ea. Rear 370mm (14.5″) x 28mm (1.2mm) rotors internally vented. Service Parts – Front Kit Rotors – DIV3430X985C24 Pads – PNS4415X502.4 Calipers – CIR1559K08HZL/R Brackets – BSK4415X560.
